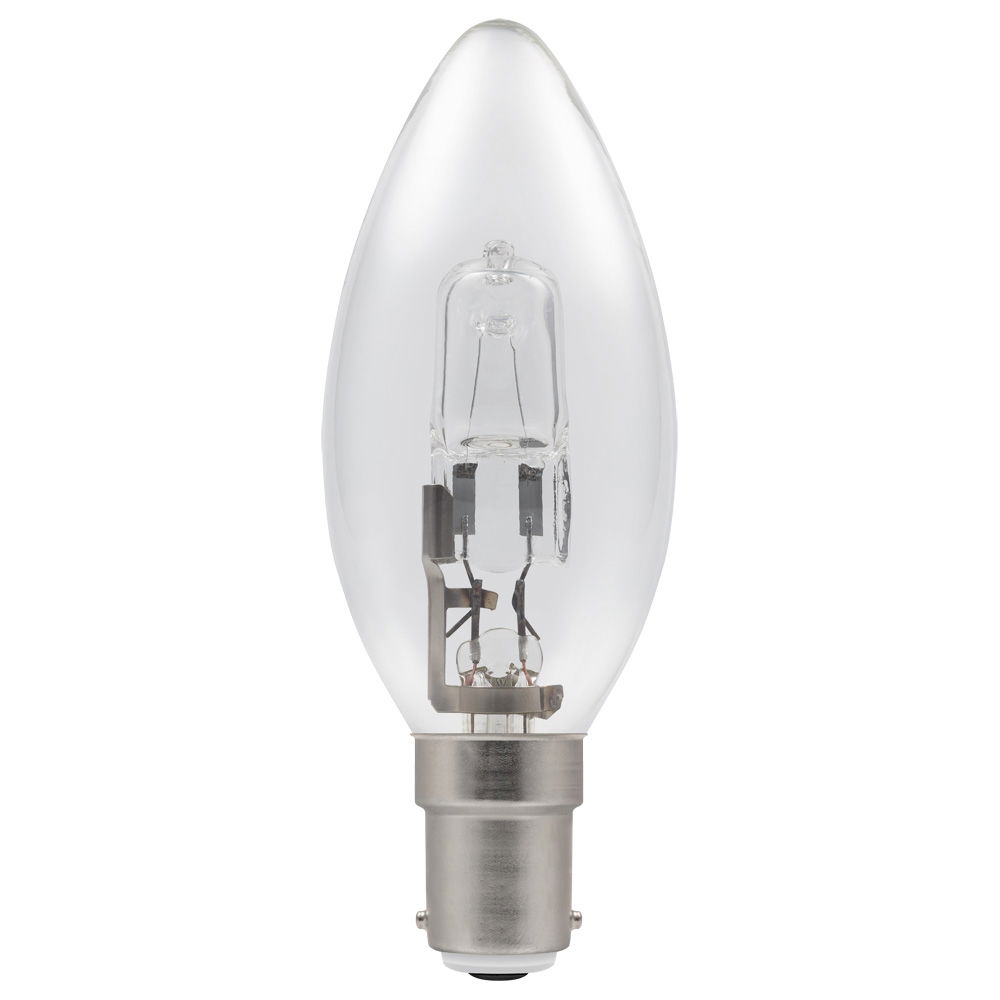

Discontinued - Energy Saving Halogen Candle • Dimmable • 42W • 2700K • SBC-B15d


Discontinued Product - No suitable replacement available


Halogen 35mm candle retrofit energy efficient lamp.

Suitable for a wide variety of applications.

Finished in clear, UV stop glass.

Important Information: This halogen lamp must be operated in a CAP DOWN position only.
Note:The switch-on surge of a mains voltage halogen lamp is higher than that of an incandescent lamp and hence it may be necessary to reduce the total wattage per circuit to avoid nuisance tripping of associated breakers. The use of dimmers will exacerbate this problem and, in extreme circumstances, it may be necessary to reduce the installed wattage by 50% of the breaker's rate capacity. If in any doubt, contact a qualified electrician.

Stock Code: ECAN42CSBC

Related Products

Halogen 35mm candle retrofit energy efficient lamp.

Suitable for a wide variety of applications.

Finished in clear, UV stop glass.

  • 2,000 hour life
  • 8,000 switching cycles
  • SBC-B15d cap
  • 2700K warm white colour temperature
  • Colour rendering index ≥100
  • Suitable for dimming
  • Recommended for indoor use only
  • Instant full light
Important Information: This halogen lamp must be operated in a CAP DOWN position only.
Note:The switch-on surge of a mains voltage halogen lamp is higher than that of an incandescent lamp and hence it may be necessary to reduce the total wattage per circuit to avoid nuisance tripping of associated breakers. The use of dimmers will exacerbate this problem and, in extreme circumstances, it may be necessary to reduce the installed wattage by 50% of the breaker's rate capacity. If in any doubt, contact a qualified electrician.

Equivalent to

55W

Traditional Candle


Running Cost
£15.42

Equivalent Running Cost
£20.19

Cost Saving
£4.77

Energy Saving
24%

Based on annual usage 7hrs/day @ £0.1437kWhr

Part Code:

ECAN42CSBC

Product Name:

ESH Candle 42W Dimmable 2700K SBC-B15d

Notes:

Cap down operating position only. The switch-on surge of a mains voltage halogen lamp is higher than that of an incandescent lamp and hence it may be necessary to reduce the total wattage per circuit to avoid nuisance tripping of associated breakers. The use of dimmers will exacerbate this problem and, in extreme circumstances, it may be necessary to reduce the installed wattage by 50% of the breaker's rate capacity. If in any doubt, contact a qualified electrician.

Nominal Voltage:

240V

Nominal Wattage:

42W

Nominal Luminous Flux:

630lm

Nominal Life:

2,000 hours

Dimmable:

Dimmable

Cap Type:

SBC-B15d

Energy Saving:

Yes

Equivalent Wattage:

55W Traditional Candle

Energy Efficiency Class:

C

Rated Wattage (0.1W Precision):

42.0W

Voltage:

240V

Operating Frequency:

50/60Hz

Power Factor λ:

>1

Operating Current:

180mA

Weighted Energy Consumption:

42W

Rated Total Luminous Flux:

630lm

Colour Temperature:

2700K

Colour Name:

Warm White

Colour Rendering Index:

≥100

Starting Time:

Instant full light

Warm Up Time (to 60% Light Output):

<0.5 seconds

Lumen Maintenance Factor:

0.8

Efficiency:

15lm/W

Rated Life:

2,000 hours

Switching Cycles:

8,000

Diameter:

35mm

Height:

98mm

Mercury (Hg) Content:

0.0mg

EAN13 Barcode:

5018986513235

Name:
File Type:
Date Modified:

Jul 24 2018
