Discontinued - Halogen MR11 Cool Beam 12V • 20W • 2700K • GU4


Discontinued Product - No suitable replacement available

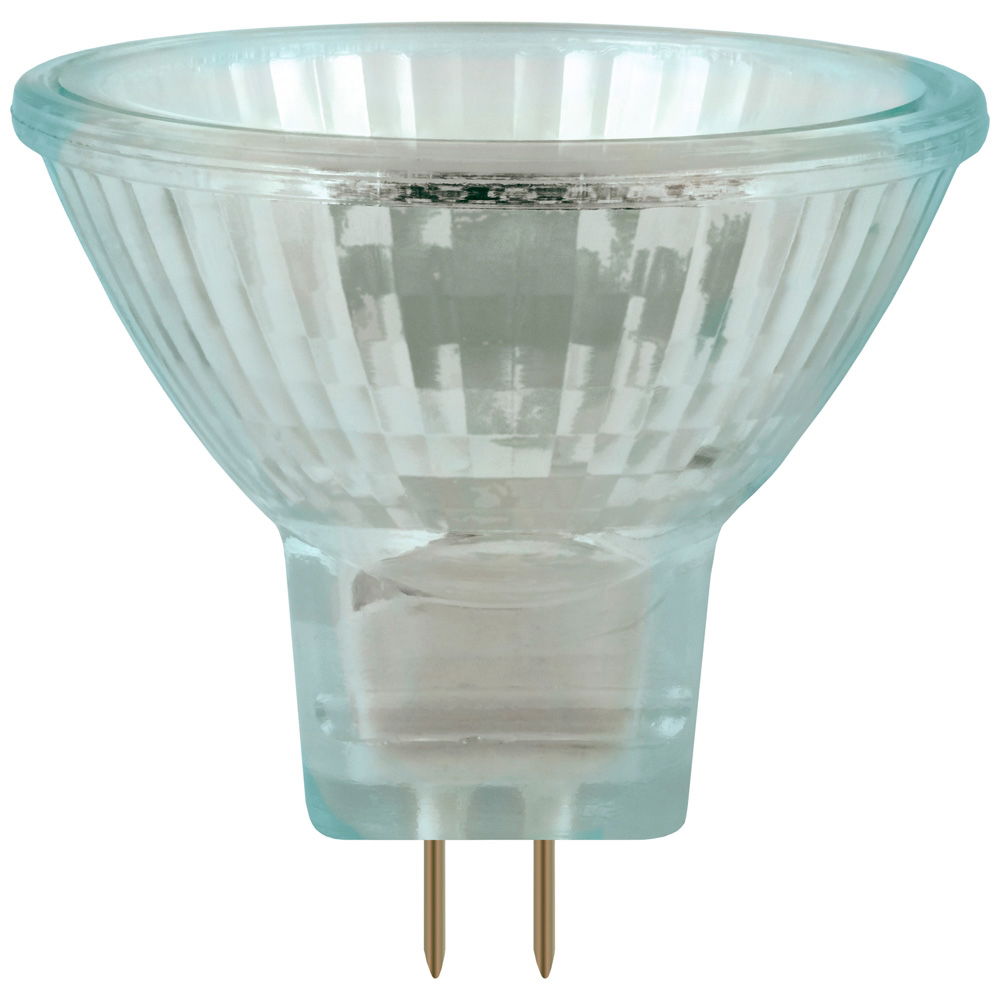

12V Halogen MR11 cool beam dichroic lamp with high output illumination, precision distribution and long life.

For use in a multitude of luminaires and spotlights.

Constructed from UV stop glass, removing the need for additional UV protection.

Important Information: Cool beam lamp - must be used in open or well ventilated fittings which can dissipate heat emitted from the back of the lamp.

Stock Code: LV3520MS

12V Halogen MR11 cool beam dichroic lamp with high output illumination, precision distribution and long life.

For use in a multitude of luminaires and spotlights.

Constructed from UV stop glass, removing the need for additional UV protection.

  • 4,000 hour life
  • 16,000 switching cycles
  • GU4 cap
  • 20° beam angle
  • 2700K warm white colour temperature
  • Colour rendering index ≥100
  • Suitable for dimming
  • Recommended for indoor use only
  • Instant full light
Important Information: Cool beam lamp - must be used in open or well ventilated fittings which can dissipate heat emitted from the back of the lamp.

Part Code:

LV3520MS

Product Name:

12V Halogen MR11 Cool Beam 20W Dimmable 2700K GU4

Notes:

Cool beam lamp - must be used in open or well ventilated fittings which can dissipate heat emitted from the back of the lamp.

Nominal Voltage:

12V

Nominal Wattage:

20W

Nominal Luminous Flux:

135lm

Nominal Beam Angle:

20°

Nominal Life:

4,000 hours

Dimmable:

Dimmable

Cap Type:

GU4

Energy Saving:

No

Energy Efficiency Class:

D

Rated Wattage (0.1W Precision):

20.0W

Voltage:

12V

Operating Frequency:

50/60Hz

Power Factor λ:

>1

Weighted Energy Consumption:

22W

Rated Beam Angle:

20°

Rated Total Luminous Flux:

135lm

Colour Temperature:

2700K

Colour Name:

Warm White

Colour Rendering Index:

≥100

Starting Time:

Instant full light

Warm Up Time (to 60% Light Output):

<0.5 seconds

Lumen Maintenance Factor:

0.8

Efficiency:

7lm/W

Rated Life:

4,000 hours

Switching Cycles:

16,000

Diameter:

35mm

Height:

35mm

Mercury (Hg) Content:

0.0mg

EAN13 Barcode:

5018986674547
