Discontinued - Galanos Athena LED Panel 600x600 • 40W • 4000K


Discontinued Product - See below for replacement product

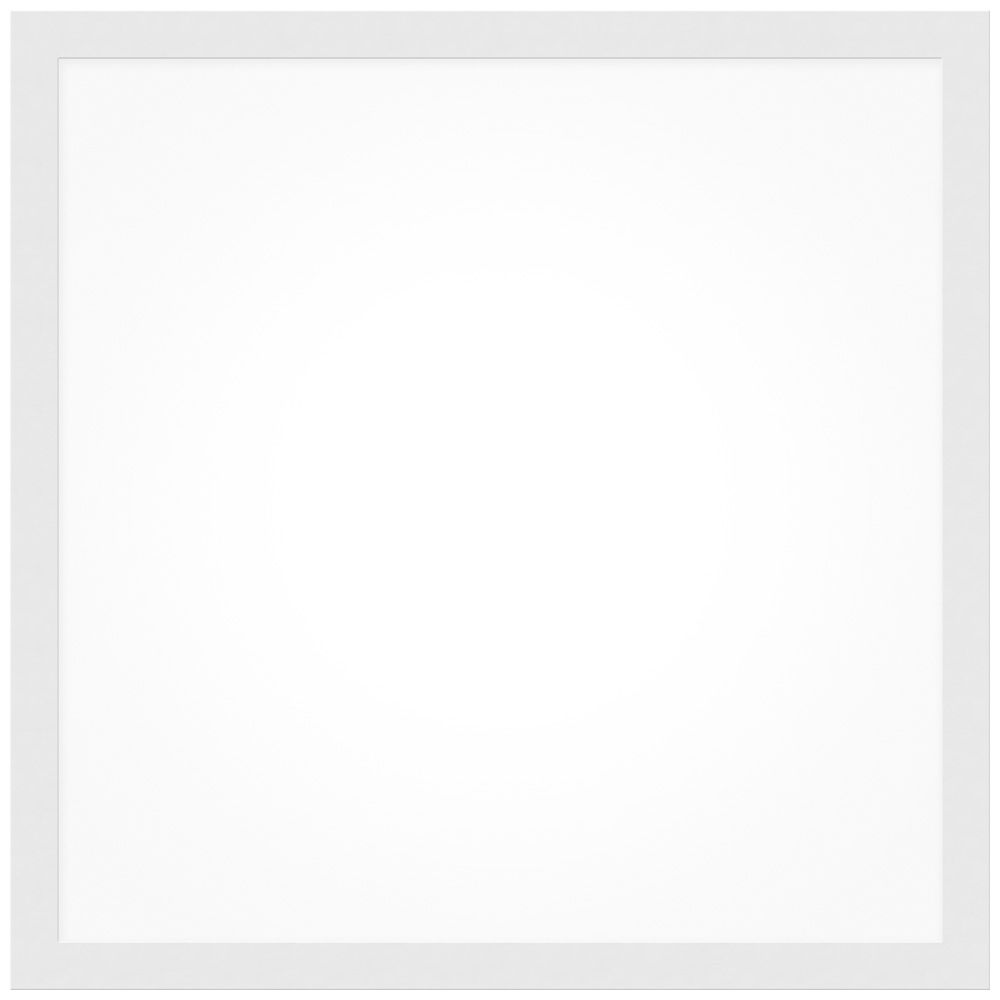

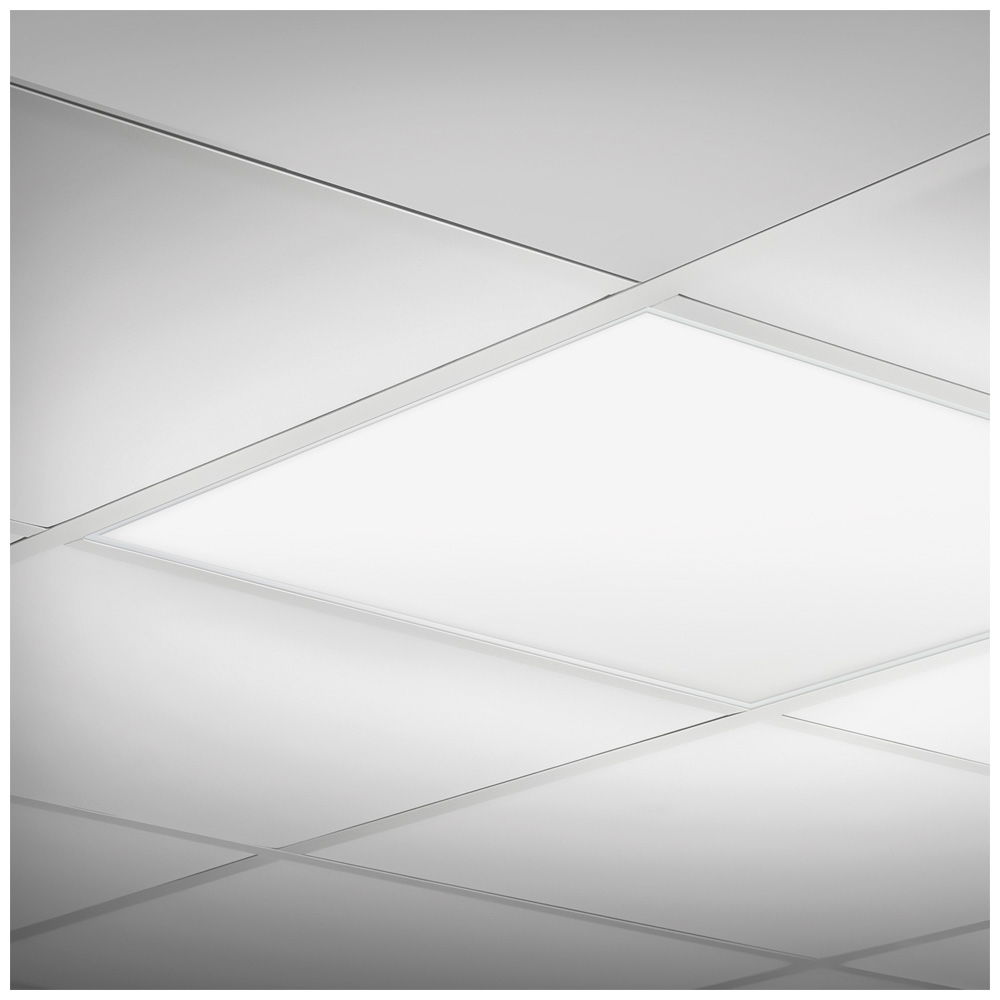

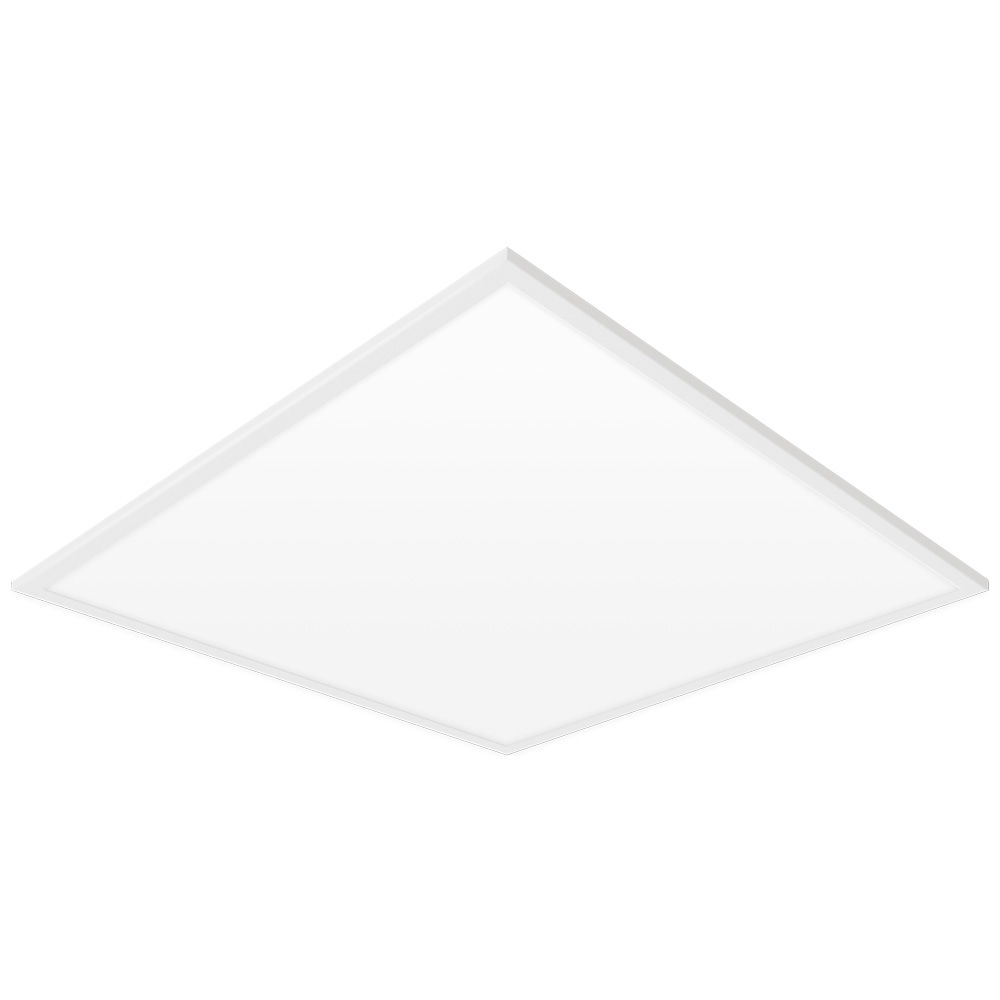

Energy efficient integrated LED panel featuring a super slim design.

Standard size 600mm x 600mm integrated LED panel with long life 30,000 hour maintenance free operation.

Constructed from an aluminium frame and housing with polycarbonate diffuser. Edge-lit LED technology with a high efficacy 85lm/W.

Stock Code: 9646

Replacement Products

Energy efficient integrated LED panel featuring a super slim design.

Standard size 600mm x 600mm integrated LED panel with long life 30,000 hour maintenance free operation.

Constructed from an aluminium frame and housing with polycarbonate diffuser. Edge-lit LED technology with a high efficacy 85lm/W.

  • 30,000 hour life
  • 30,000 switching cycles
  • 120° beam angle
  • 4000K cool white colour temperature
  • Colour rendering index ≥80
  • Not suitable for dimming
  • For indoor use only
  • Instant full light
  • 5 year warranty

Part Code:

9646

Product Name:

Galanos Athena LED Panel 600x600 40W 4000K

Nominal Voltage:

240V

Nominal Wattage:

40W

Nominal Luminous Flux:

3400lm

Nominal Beam Angle:

120°

Nominal Life:

30,000 hours

Dimmable:

Not suitable for dimming

Energy Saving:

Yes

Energy Efficiency Class:

This luminaire contains built-in LED lamps (A++, A+ or A). The lamps cannot be changed in this luminaire.

Rated Wattage (0.1W Precision):

40.0W

Voltage:

240V

Operating Frequency:

50/60Hz

Power Factor λ:

>0.9

Weighted Energy Consumption:

40W

Rated Beam Angle:

120°

Rated Useful Luminous Flux:

3180lm

Rated Total Luminous Flux:

3400lm

Colour Temperature:

4000K

Colour Name:

Cool White

Weighted Energy Consumption:

COL840

Colour Rendering Index:

≥80

Colour Consistency SDCM:

≤6

ΔUV:

±0.003

Starting Time:

Instant full light

Warm Up Time (to 60% Light Output):

<0.5 seconds

Efficiency:

85lm/W

Rated Life:

30,000 hours

Switching Cycles:

30,000

Warranty:

5 years

Width:

595mm

Height:

10mm

Length:

595mm

Other Dimensions:

Driver Dimensions: 139mm(l) x 43mm(w) x 25mm(h)mm

Housing Material:

Aluminium frame and Housing

Ingress Protection Code:

IP20

Appliance Class:

II

Mercury (Hg) Content:

0.0mg

Ambient Operating Temperature:

-20°C to 45°C

EAN13 Barcode:

5055579309646

Outer Carton GS1-128 Barcode:

0205055579309646375

Outer Carton Quantity:

5
