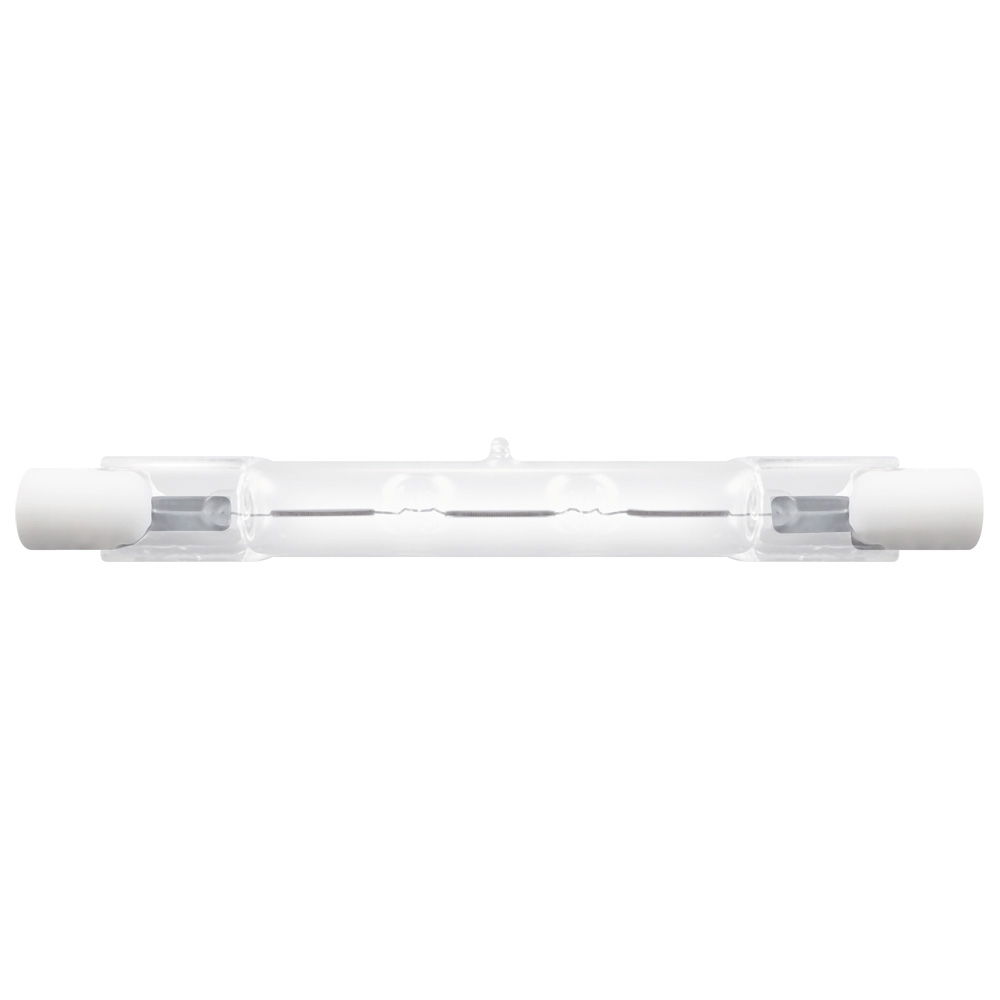

Discontinued - Energy Saving Halogen Linear 78mm • 48W • 2700K • R7s

Discontinued Product - No suitable replacement available

Halogen linear retrofit energy efficient lamp.

Linear halogen lamp with 78mm length.

Offers excellent lumen maintenance, instant illumination and high colour rendition.

Widely used in display lighting, up-lighters and floodlights.

Important Information: ±15° horizontal operation only

Stock Code: ETH48R7

Halogen linear retrofit energy efficient lamp.

Linear halogen lamp with 78mm length.

Offers excellent lumen maintenance, instant illumination and high colour rendition.

Widely used in display lighting, up-lighters and floodlights.

  • 2,000 hour life
  • 8,000 switching cycles
  • R7s cap
  • 2700K warm white colour temperature
  • Colour rendering index ≥100
  • Suitable for dimming
  • Recommended for indoor use only
  • Instant full light
Important Information: ±15° horizontal operation only

Running Cost
£17.62

Equivalent Running Cost
£22.03

Cost Saving
£4.41

Energy Saving
20%

Based on annual usage 7hrs/day @ £0.1437kWhr

Part Code:

ETH48R7

Product Name:

ESH Linear 48W Dimmable 2700K R7s

Notes:

±15° Horizontal Operating Position.

Nominal Voltage:

240V

Nominal Wattage:

48W

Nominal Luminous Flux:

745lm

Nominal Life:

2,000 hours

Dimmable:

Dimmable

Cap Type:

R7s

Energy Saving:

No

Equivalent Wattage:

60W

Energy Efficiency Class:

C

Rated Wattage (0.1W Precision):

48.0W

Voltage:

240V

Operating Frequency:

50/60Hz

Power Factor λ:

>1

Weighted Energy Consumption:

48W

Rated Total Luminous Flux:

745lm

Colour Temperature:

2700K

Colour Name:

Warm White

Colour Rendering Index:

≥100

Starting Time:

Instant full light

Warm Up Time (to 60% Light Output):

<0.5 seconds

Lumen Maintenance Factor:

0.8

Efficiency:

16lm/W

Rated Life:

2,000 hours

Switching Cycles:

8,000

Diameter:

12mm

Height:

78mm

Mercury (Hg) Content:

0.0mg

EAN13 Barcode:

5055579306140

Inner Carton GS1-128 Barcode:

020505557930614037100

Inner Carton Quantity:

100

Outer Carton GS1-128 Barcode:

0205055579306140371000

Outer Carton Quantity:

1000
