Linear-ESH-3_inch-80W-2700K-R7s-ETH80R7

Discontinued - Energy Saving Halogen Linear 78mm • Dimmable • 80W • 2700K • R7s

New 2021 Energy Rating Label: Stock Code ETH80R7
New 2021 Energy Rating: G

Energy Labelling Guide

Discontinued Product - No suitable replacement available

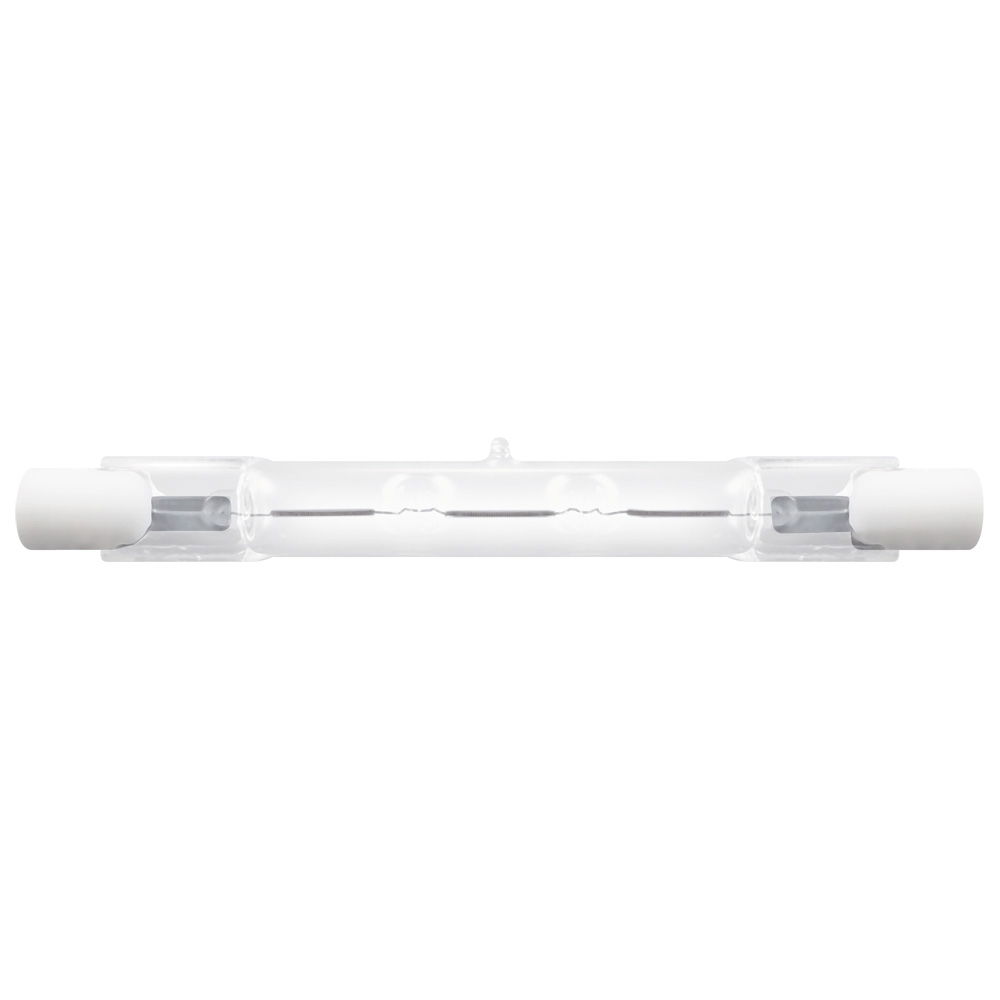

Halogen linear retrofit energy efficient lamp.

Linear halogen lamp with 78mm length.

Offers excellent lumen maintenance, instant illumination and high colour rendition.

Widely used in display lighting, up-lighters and floodlights.

Important Information: ±15° horizontal operation only

Stock Code: ETH80R7

Related Products

Linear-ESH-4.6_inch-80W-2700K-R7s-ETH80R7L
Discontinued - Energy Saving Halogen Linear 117mm • Dimmable • 80W • 2700K • R7s

Stock Code: ETH80R7L

Halogen linear retrofit energy efficient lamp.

Linear halogen lamp with 78mm length.

Offers excellent lumen maintenance, instant illumination and high colour rendition.

Widely used in display lighting, up-lighters and floodlights.

  • 2,000 hour life
  • 8,000 switching cycles
  • R7s cap
  • 2700K warm white colour temperature
  • Colour rendering index ≥100
  • Suitable for dimming
  • Recommended for indoor use only
  • Instant full light
Important Information: ±15° horizontal operation only

Running Cost
£29.37

Equivalent Running Cost
£36.72

Cost Saving
£7.35

Energy Saving
20%

Based on annual usage 7hrs/day @ £0.1437kWhr

Part Code:

ETH80R7

Product Name:

ESH Linear 80W Dimmable 2700K R7s

Notes:

±15° Horizontal Operating Position.

Nominal Voltage:

240V

Nominal Wattage:

80W

Nominal Luminous Flux:

1400lm

Nominal Life:

2,000 hours

Dimmable:

Dimmable

Cap Type:

R7s

Energy Saving:

No

Equivalent Wattage:

100W

Energy Efficiency Class:

New 2021 Energy Rating: G

Pre-2021: C

Rated Wattage (0.1W Precision):

80.0W

Voltage:

240V

Operating Frequency:

50/60Hz

Power Factor λ:

>1V

Operating Current:

350mA

Weighted Energy Consumption:

80W

Rated Total Luminous Flux:

1400lm

Colour Temperature:

2700K

Colour Name:

Warm White

Colour Rendering Index:

≥100

Starting Time:

Instant full light

Warm Up Time (to 60% Light Output):

<0.5 seconds

Lumen Maintenance Factor:

≥80%

Efficiency:

18lm/W

Rated Life:

2,000 hours

Switching Cycles:

8,000

Diameter:

12mm

Height:

78mm

Product Weight:

0.005kg

Mercury (Hg) Content:

0.0mg

EAN13 Barcode:

5018986672086

Single Carton Length:

2.2cm

Single Carton Width:

2.2cm

Single Carton Height:

9.8cm

Single Carton Volume:

47.432cm³

Single Carton Weight:

0.009KG

Inner Carton GS1-128 Barcode:

020501898667208637100

Inner Carton Quantity:

100

Inner Carton Length:

20.5cm

Inner Carton Width:

25cm

Inner Carton Height:

13cm

Inner Carton Volume:

6662.5cm³

Inner Carton Weight:

1.1kg

Outer Carton GS1-128 Barcode:

0205018986672086371000

Outer Carton Quantity:

1000

Outer Carton Length:

23cm

Outer Carton Width:

68cm

Outer Carton Height:

53cm

Outer Carton Volume:

82892cm³

Name:
File Type:
Date Modified:
  Specification_Sheet

Jul 24 2018
