CFL Single Turn S Type • 11W • 3000K • G23 2-Pin

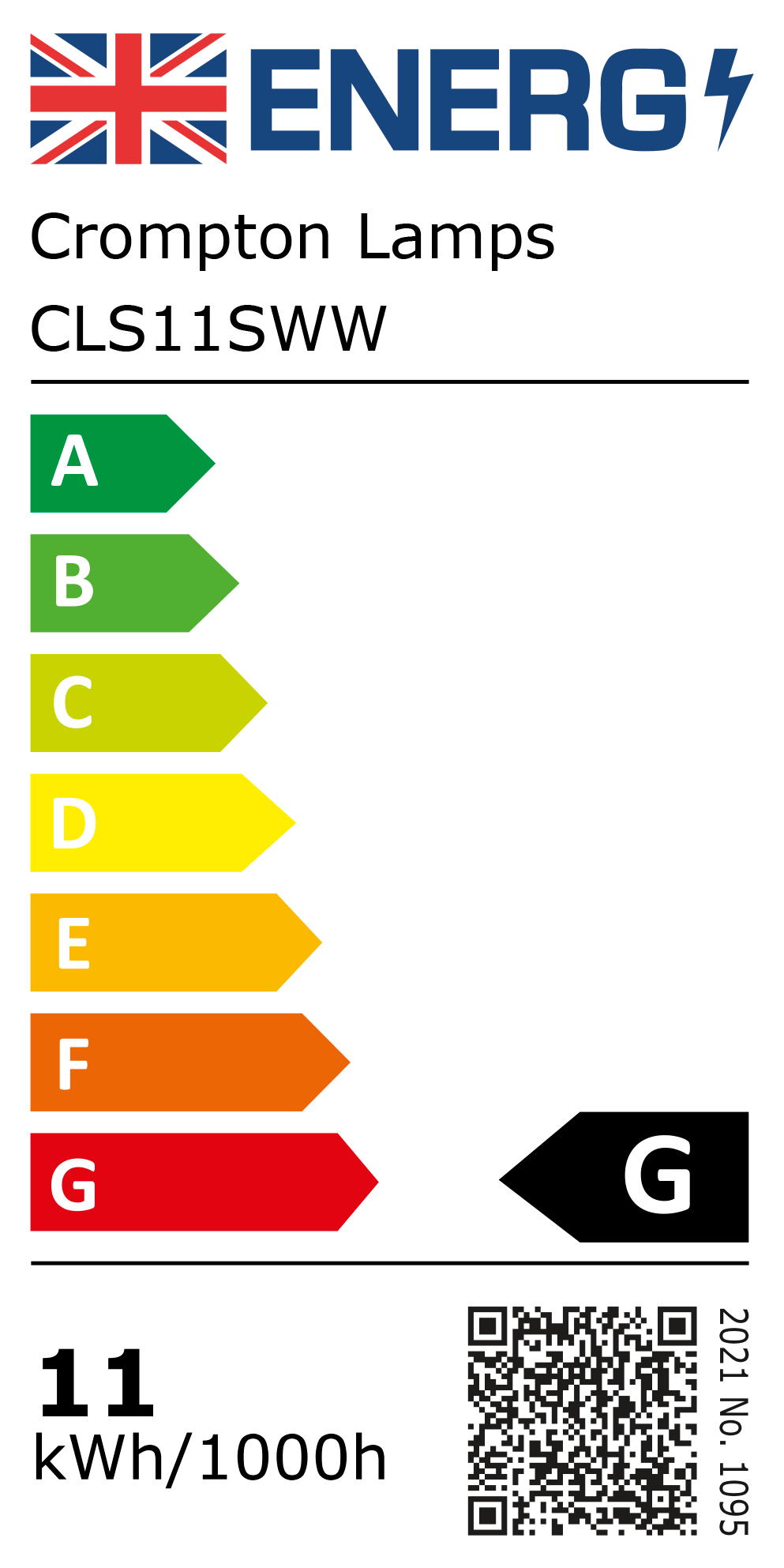

New 2021 Energy Rating: G

Energy Labelling Guide

Compact fluorescent single turn S-Type lamp (PL) 2 Pin.

Commonly used in commercial and domestic luminaires. Ideal for use in downlights, bulkheads and other suitable applications.

Spectra-Plus Triphosphor coated for excellent colour rendering, high output and long life.

Separate ballast/control gear required.

Stock Code: CLS11SWW

Compact fluorescent single turn S-Type lamp (PL) 2 Pin.

Commonly used in commercial and domestic luminaires. Ideal for use in downlights, bulkheads and other suitable applications.

Spectra-Plus Triphosphor coated for excellent colour rendering, high output and long life.

Separate ballast/control gear required.

  • 10,000 hour life
  • 8,000 switching cycles
  • G23 2-Pin cap
  • 3000K warm white colour temperature
  • Colour rendering index ≥85
  • Not suitable for dimming
  • Recommended for indoor use only
  • 2 year warranty

Part Code:

CLS11SWW

Product Name:

CFL Single Turn S Type 11W 3000K G23 2 Pin

Notes:

Separate ballast/control gear required.

Nominal Wattage:

11W

Nominal Luminous Flux:

905lm

Nominal Life:

10,000 hours

Dimmable:

Not suitable for dimming

Cap Type:

G23 2-Pin

Energy Saving:

No

Energy Efficiency Class:

New 2021 Energy Rating: G

Pre-2021: A

Rated Wattage (0.1W Precision):

11.0W

Power Factor λ:

>0.91

Weighted Energy Consumption:

14W

Rated Total Luminous Flux:

905lm

Colour Temperature:

3000K

Colour Name:

Warm White

Weighted Energy Consumption:

COL830

Colour Rendering Index:

≥85

Starting Time:

10 seconds

Warm Up Time (to 60% Light Output):

<60 seconds

Lumen Maintenance Factor:

≥80%

Efficiency:

82lm/W

Rated Life:

10,000 hours

Switching Cycles:

8,000

Warranty:

2 years

Diameter:

32mm

Height:

233mm

Product Weight:

0.037kg

Mercury (Hg) Content:

2.5mg

EAN13 Barcode:

5018986524255

Single Carton Length:

3.6cm

Single Carton Width:

2.2cm

Single Carton Height:

24.2cm

Single Carton Volume:

191.664cm³

Single Carton Weight:

0.054KG

Inner Carton GS1-128 Barcode:

02050189865242553750

Inner Carton Quantity:

50

Inner Carton Length:

19cm

Inner Carton Width:

23.5cm

Inner Carton Height:

25.5cm

Inner Carton Volume:

11385.75cm³

Inner Carton Weight:

3.287kg

Outer Carton GS1-128 Barcode:

020501898652425537200

Outer Carton Quantity:

200

Outer Carton Length:

40cm

Outer Carton Width:

49cm

Outer Carton Height:

27.5cm

Outer Carton Volume:

53900cm³
